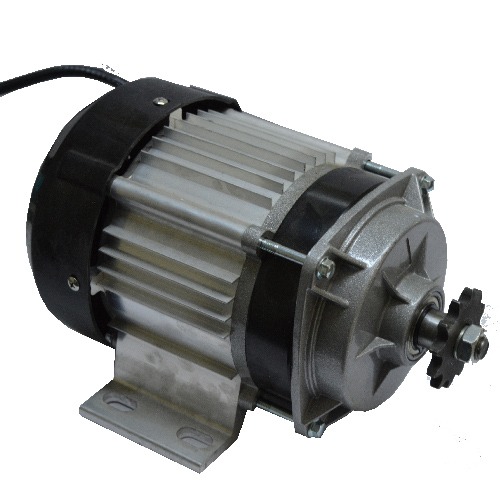

24V 350W Mid drive BLDC motor (chain drive)
$ 54.65
- 24V 350W Mid drive BLDC motor (chain drive) For Electric Tricycle This BLDC Motor has all the necessary items to build your brand new bikes, scooters, and tricycles and to save your efforts in looking out for all compatible products and you can get it in just one go at a reasonable cost. This full-fledged combination of motor and controller is Universal for bikes, scooters, and tricycles. Specification: Type: BLDC Motor Construction: Permanent Magnet Commutation: Brushless DC motor rated Voltage(V): 24V rated torque: 1100Kg-cm rated Speed(RPM): 2300RPM peak Speed(RPM): 2370RPM rated Output Power:350W Grade of protection: IP33 Usage: / Electric Tricycle / Activa (like a scooter) rated current (A) : 18A current without loading: 3A What is a mid-drive motor? Mid-drive motors are directly attached to the drivetrain and your pedaling inputs. In most cases, the drivetrain of a chain-drive electric bike is comprised of a conventional chain, chainrings, and tape, which cooperate to drive the rear wheel and move you forward. Mid-drive motors are known for higher performance and torque when compared to a similarly powered traditional hub motor. One key motivation behind why would that be the chain drive motor drives the crank, instead of the wheel itself, multiplying its power and allowing it to better take advantage of the bike’s existing gears. The single biggest benefit that mid-motors have over hub motors is their gear ratio. They permit the rider to drive the back tire through something very similar chain and gear set as the pedals, which means that low stuff can be chosen for driving up steep hills or accelerating from a stop with massive torque. A mid-drive motor in low gear can climb steeper hills than a hub motor of similar power and can climb hills for longer than a hub motor, which could overheat on long steep hill climbs. Compatible battery pack LI-ion 24V 7.5Ah (Note: this item is not included in this kit) Package including 24V 350W Mid drive BLDC motor (chain drive) Related SKU: PRA-RC-0890 Category: Motor Tags: 24v 350w mid drive bldc motor, 350w bldc motor chain drive, 24v mid drive motor for e-bike, bldc motor chain drive system, 350w mid drive motor
