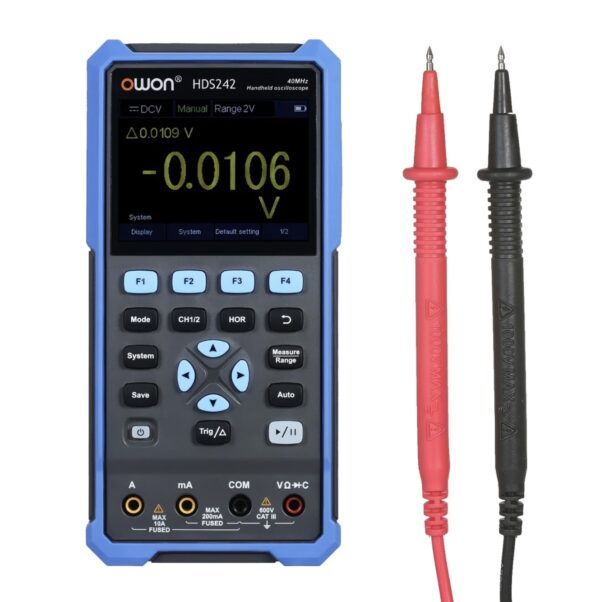

OWON HDS242S Handheld Digital Oscilloscope ＋ Multimeter ＋ Signal Source 3 In 1, Dual Channel 40-100MHz Waveform Generator
$ 92.57

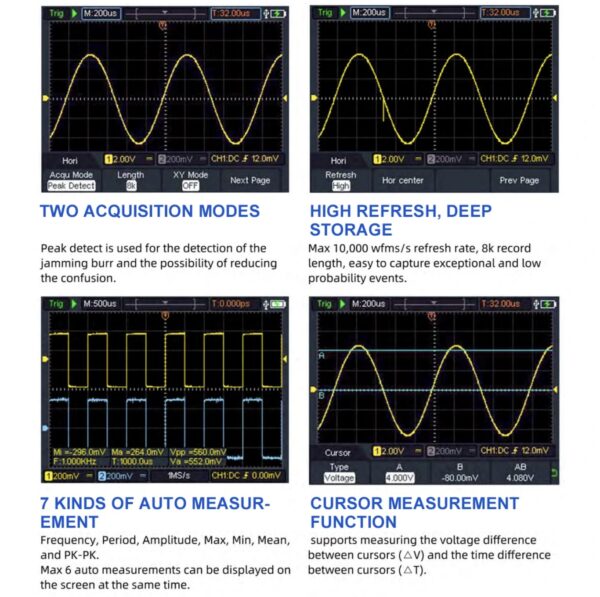

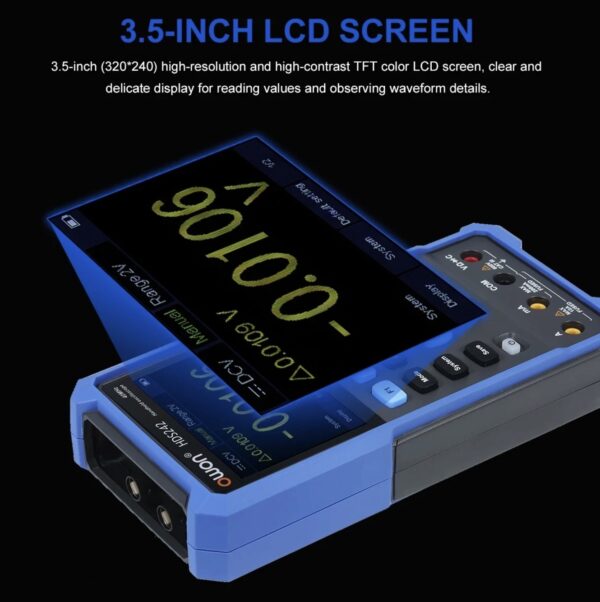

- Description This is a 3-in-1 multifunctional tester, which can be used as a oscilloscope / multimeter / waveform generator. Handheld design, great for outdoor facility maintenance, rapid on-site measurement, automobile maintenance, power detection. etc. Features: 3-in-1 multifunction- in Oscilloscope mode, it features dual channel input with 40MHz bandwidth and waveform refresh rate up to 10,000wfms/s; in Multimeter mode, it can measure voltage, current, resistance, diode, capacitance and do continuity test ; in Waveform Generator mode,it can output sine, square, ramp, pulse and built-in special waveforms with frequency up to 25MHz. Ergonomic design- its compact size makes it easy to carry outside, and it has a stand which allows it to sit securely on table. Comes with carrying bag for convenient storage. Large battery capacity- powered by two 2200mAh batteries, it can work continuously for about 6 hours on a single charge, and it can be easily charged via its USB interface by a adapter or portable battery. Large and clear display- equipped with a 3.5-inch high-resolution, high-contrast color LCD display, making it easy to read the numbers and waveform details. Easy to use- with simple button panel and intuitive interface, this device is easy to operate, suitable for outdoor facility maintenance, rapid on-site measurement, automobile maintenance, power detection. etc. Specifications: Brand: OWON Model: HDS242S Material: ABS Function: Oscilloscope Multimeter Waveform Generator(only for HDS242S) Requires Battery: 2 x 2200mAh 18650 Lithium Battery (Battery not included, please purchase separately) Charging Method: USB Type-C Item Size: 19.5 x 9.5 x 3.8cm / 7.68 x 3.74 x 1.5in Item Weight: 519g / 18.3oz Package Weight: 1100g / 38.8oz Package Size: 24 x 15.5 x 8.8cm / 9.45 x 6.1 x 3.46in Model HDS242 HDS272 HDS242S HDS272S Oscilloscopes Bandwidth 40MHz 70MHz 40MHz 70MHz Channels 2- CH Oscilloscope 2-CH Oscilloscope 1-CH Generator Sample Rate 250MSa/s Acquisition Model Normal, Peak detect Record Length 8K Display 3.5 -inch LCD Waveform Refresh Rate 10,000 wfrms/s Input Coupling DC, AC, and Ground Input Impedance 1 MΩ 2%, inparallel with 16pF 10pF Probe Attenuation Factors 1X,10X,100X,1000X Max. input Voltage 400V (DC AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation) Bandwidth Limit (typical) 20MHz Horizontal Scale 5ns/div – 500s/div, step by 1-2- 5 Vertical Sensitivity 10mV/div – 10V/div Vertical Resolution 8 bits Trigger Type Edge Trigger Modes Auto, Normal, single Automatic Measurement Frequency, Period, Amplitude, Max, Min, Mean, PK-PK Cursor Measurement △V, △T, △T&△V between cursors Communication Interface USB Type-C Multimeter (Standard) Max. Resolution 20,000 counts Testing Mode Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test Input Impedance 10MΩ Max Input Voltage AC 750V, DC 1000V Max Input Current DC: 10A AC: 10A Diode 0 – 2V Waveform Generator Frequency Output N/A Sine: 0.1Hz – 25MHz N/A Square: 0.1Hz – 10MHz N/A Ramp: 0.1Hz – 1MHz N/A Pulse: 0.1Hz – 5MHz N/A Arbitrary: 0.1Hz – 5MHz Sampling Rate N/A 125MSa/s Channel N/A 1-CH Amplitude Range N/A 20mVpp-5Vpp Waveform Length N/A 8K Vertical Resolution N/A 14bits Output Impedance N/A 50Ω Packing List: 1 x HDS242S Oscilloscope 1 x Soft Bag 1 x Probe 1 x Power Cord 1 x Probe Adjust 1 x USB Cable 1 x Adapter(EU Plug) 1 x Pair of Multimeter Probe Leads 1 x Pair of Oscilloscope Probe Leads (BNC to Alligator Clip) 1 x English User Manual
