Honda Activa electric conversion kit
$ 99.33

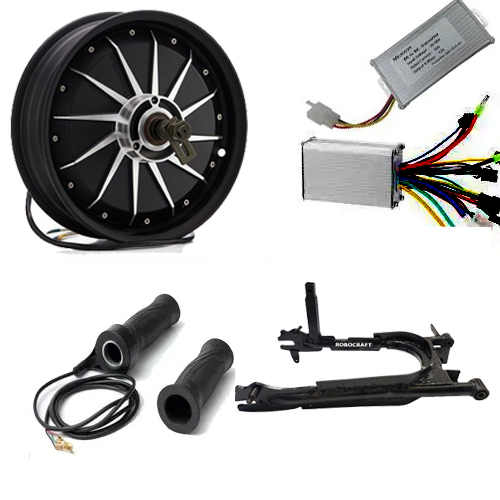

- Honda Activa electric conversion kit Motor Specification : Motor Type: BLDC Hub Motor Rim size and material:2.15-10 Iron rim Tire size: 3.0-10, 3.5-10 Rated Power: 1000W Max Power: 2000W Speed: 40-50km/hr Max No-load RPM: 620-650RPM Max Torque: 32N.M Max Efficiency: 89-90% Rated current:23A Max current:40A Brake type: Drum brake Rear Fork width for installation: 200mm Cross Section of Phase wire: 3 mm2 Axle thread: M12 Hall sensor phasing angle: 120 degree Type of Sensor: Hall Sensor(3pcs) Working Temperature: max 60 degree Cooling method: Air cooling Waterproof Grade: IP67 Controller Specification:– Key Features : Easy to connect. Silent Motor Operation. Soft start can be adjusted. High quality Fins for Heat Dissipation. Can match with almost all BLDC Motor. Main Functions 3 – Speed Mode Sport Mode Reverse High Brake Pakage includiong: 1X 1200W 48/60V Hub motor 10 inch 1x Controller 1x Throttle 3 speed 1x DC-DC converter Related SKU: PRA-RC-1273 Category: Electric vehicle conversion kit
