24V 350W 10Inch Wheel Hub Motor
$ 75.14

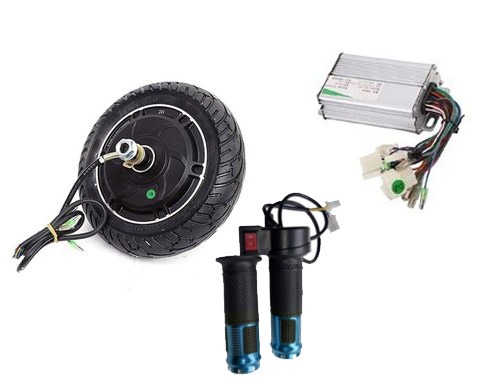

- This is a 24V 350W 10Inch Wheel Hub Motor Electric Bicycle E-Bike Hub Motor, 24V Wheel Motor for E-Bike Scooter Motorcycle Cycling Hub Conversion Kit. A hub drive motor is the most common type of motor you’ll see on cheaper E-bikes, with the motor integrated into the front or rear wheel. The latter is more common, but a few bikes even have motors on both wheels. A hub drive directly applies torque to the wheel, operating independently of your bike’s gears. The Geared hub motor operates like a direct-drive hub motor, except that within the hub, there’s an electric motor that spins at a much higher speed. That motor’s shaft connects to a series of planetary gears that connect to the hub, turning the center at a lower speed 24v 350watt BLDC 10-inch Wheel hub Motor kit for Electric Bicycle. 24V 350W 10Inch Wheels Hub Motor specification: Rated Power – 350w. Rated Voltage – 24v. Speed – 800 RPM. (400-1000 RPM). Motor Efficiency – >83%. Rim Size – 10 inches. Speed – 12-28km/h. Diameter – 254mm with a tire. Open File – 95mm. Weight – 4.5 kg. Load Weight – 80-150 KG. Package list: 1x 24V 10Inch Hub motor 1X 24V controller 1X throttle Comparable Battery pack: 24V Lithium-Ion battery pack Related SKU: PRA-RC-0815 Category: Electric vehicle conversion kit
