48V 1000W Brushless DC Motor tricycle Kit
$ 93.54

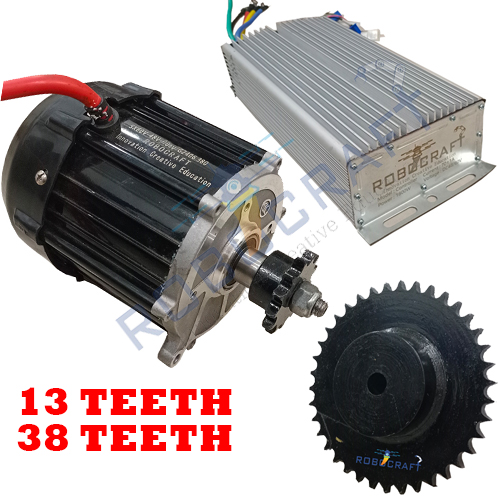

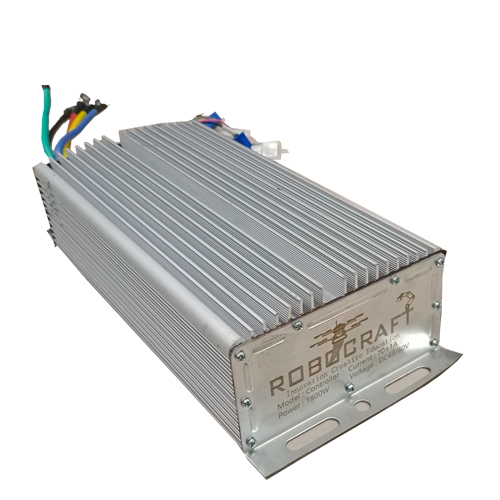

- 48V 1000W Brushless DC Motor tricycle Kit 48V 1000W Brushless DC Motor tricycle Kit and a compatible E-bike controller designed to run motors up to 1500 Watts. This kit has all the necessary items to build your brand new bikes, scooters, and tricycles and to save your efforts in looking out for all compatible products and you can get it in just one go at a reasonable cost. This full-fledge combination of motor and controller is Universal for bikes, scooters, and tricycles. 48V 1000W Brushless DC Motor tricycle Kit Chain drive Motor 48/60v 1000W For E rickshaw High-Quality BLDC Motor Electric Scooter Bike Tricycle Gear Motor Electric Rickshaw Brushless Motor E-tricycle Motor This item is a brushless motor for an electric tricycle & E rickshaw. Specification: Type: BLDC Motor Construction: Permanent Magnet Commutation:Brushless DC motor Voltage(V): 48/60V continuous torque: 800Kg peak torque: 1100 Kg Continuous Speed(RPM): 2800RPM sprocket teeth: 13 Teeth peak Speed(RPM): 3370RPM Continuous Output Power:1000W peak Output Power:3497W Grade of protection: IP33 Usage:E Rickshaw / Electric Tricycle / Activa (like scooter) Continuous current (A): 48A peak current (A) : 150A Controller: Wire Method: Wired Rated Current: 70A Rated Power: 1000W Protection Grade: IP65 Cooling Way: Passive Cooling Voltage:48/60VDC Peak current: 140A for few Sec package includes: 48/60V 1000W motor What is a mid-drive motor? Mid-drive motors are directly attached to the drivetrain and your pedaling inputs. In most cases, the drivetrain of a chain-drive electric bike is comprised of a conventional chain, chainrings, and tape, which cooperate to drive the rear wheel and move you forward. Mid-drive motors are known for higher performance and torque when compared to a similarly powered traditional hub motor. One key motivation behind why would that be the chain drive motor drives the crank, instead of the wheel itself, multiplying its power and allowing it to better take advantage of the bike’s existing gears. The single biggest benefit that mid-motors have over hub motors is their gear ratio. They permit the rider to drive the back tire through something very similar chain and gear set as the pedals, which means that low stuff can be chosen for driving up steep hills or accelerating from a stop with massive torque. A mid-drive motor in low gear can climb steeper hills than a hub motor of similar power and can climb hills for longer than a hub motor, which could overheat on long steep hill climbs. 【 DIFFERENTIAL SPEED MOTOR 】-This high-performance differential speed motor for electric tricycle is user-adjustable power and speed, self upgradable from 48 V to 60 V to meet your requirements. Power: 1500 W. Rated Speed: 3200 RPM. Speed: 25-35KM/H. 【 SOLID CONSTRUCTION 】-This electric tricycle motor features a high precision motor head with 16 tooth and anti-rust aluminum shell, sturdy and durable enough for your long-lasting use. 【 DUAL CONTROL METHODS 】-This Electric tricycle motor comes with two control methods: square wave method & sine wave vector method, which ensures smooth riding control, giving you safe riding experience. Two brake methods: disc brake & drum brake. 【 COOLING FAN DESIGN 】-This brushless dc motor is designed with a fully enclosed cooling fan to cool the motor rapidly, extending its operating life to a large extent. Application: loading tricycle 3 wheeler cycle rickshaw loading cycle rickshaw Heavy Lifting Motor warehouse electric trolley forklift electric Goods trolley Related SKU: PRA-RC-1285 Category: Electric vehicle conversion kit Tag: 48V 1000W Brushless DC Motor For Electric Tricycle
