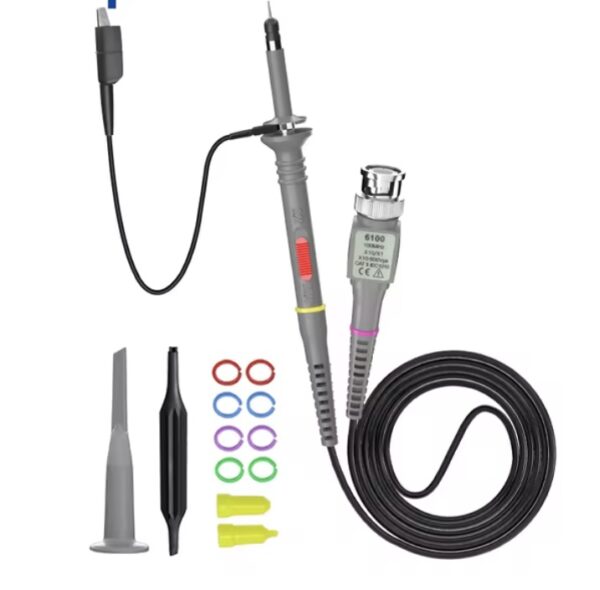

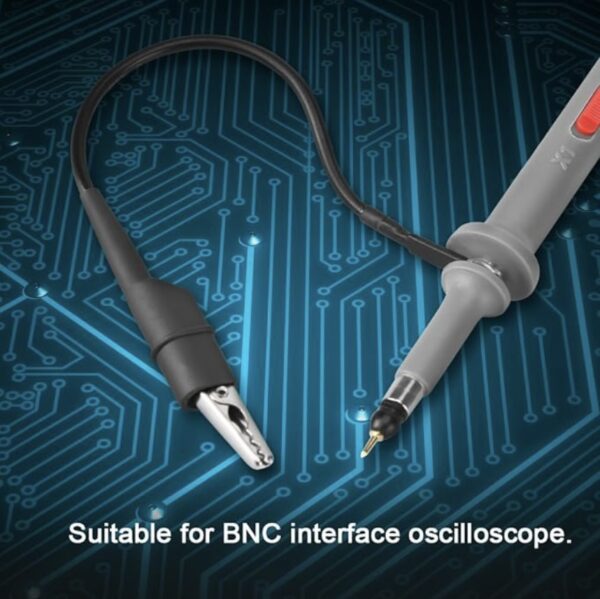

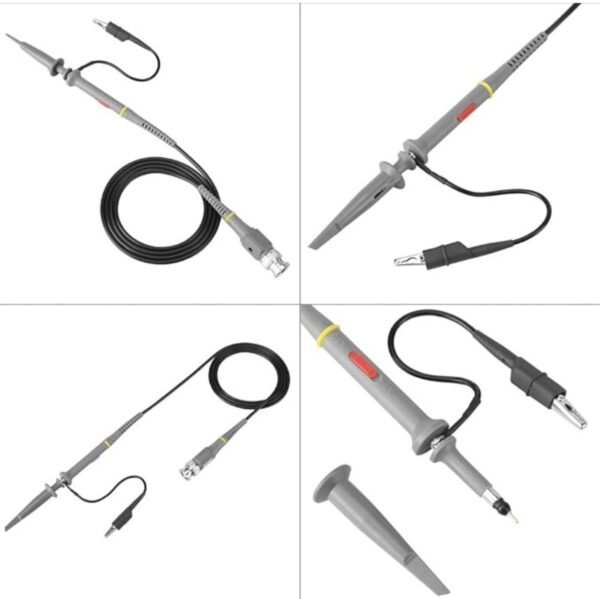

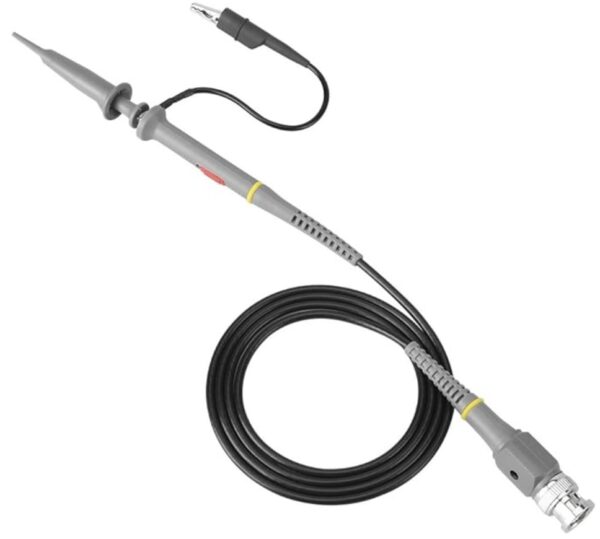

P6100 20-200MHz BNC Oscilloscope Probe Pair
$ 15.38
- Description P6100-BNC Oscilloscope Probe kit Universal 10:1 and 1:1 switchable bandwidth 100MHz; Used with oscilloscopes from all manufacturers , equipped with the standard BNC connector Oscilloscope probe is an electric component that connects circuit-under-test and oscilloscope input. Adopting completely new material, this P6100-BNC Oscilloscope Probe kit is of high quality. Besides, superior material and high technology enhance its hand feel and strengthen its structure. Smooth surface is comfortable to use. In addition, this probe adopts injection molding style ground wire for prolonging its service life and ensuring reliable contact. The alligator clip is very solid. It is not easy to disconnect. When you hear the accessory hook “da”, it is installed. External insulation compatible with all the BNC oscilloscope. Easy to use. Specification: Bandwidth: 100 MHz Rise time: 3.5ns Attenuation Ratio: 10:1 and 1: 1 switchable (slide switch on the handle) Damping ratio: 1x / 10x Input resistance: (1MΩ / 10M) /- 2% Input Capacitance: 1x: 70pF-120pF 10X: 13-17pF Maximum input: 1x: 200 Operating voltage (Vp-p) 10: 600 Operating voltage (Vp-p) Correction range: 10-35pF Operating temperature: 0-50 Celsius Humidity: 0-80% RH Item Length: 120 /-2cm Packing List: 2 x Piece Probe 1 x Piece Protective Cap 8 x Piece Color ring 1 x Piece Regulating Rod
