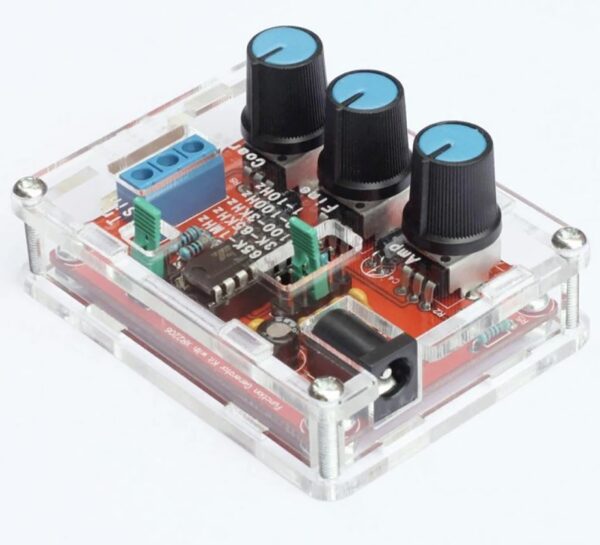

XR2206 Function Signal Generator DIY Kit
$ 4.39
- Description Features: **High-Resolution Signal Generation** The XR2206 Function Signal Generator DIY Kit is a versatile addition to any electronic enthusiast’s toolkit. With its ability to generate sine, triangular, and square waves, this module provides a comprehensive range of waveform options for various signal testing and analysis scenarios. The high-resolution five bit precision ensures accurate and reliable waveform generation, making it ideal for a variety of applications, from simple educational projects to advanced research endeavours. **User-Friendly Design and Installation** The DIY kit is designed with simplicity in mind, featuring a straightforward installation process that requires minimal soldering skills. The inline components and small number of parts make it easy to assemble, reducing the complexity of the debugging process. With a clear and concise set of instructions, even beginners can successfully build and operate their own signal generator, fostering a sense of accomplishment and technical expertise. **Versatile and Reliable Performance** The XR2206 Function Generator Kit is not just a DIY project; it’s a robust tool that delivers stable performance across a broad frequency range of 1Hz to 1MHz. The module’s ability to generate sine, triangular, and square waves with a high degree of accuracy and minimal distortion makes it an invaluable asset for hobbyists, students, and professionals alike. Whether you’re testing electronic circuits, analysing audio signals, or conducting educational experiments, this kit provides the necessary tools to accomplish your goals with precision and ease. Technical Parameters: Power supply voltage: 9-12V DC input Waveform: square wave, sine wave, and triangular wave Impedance: 600 ohms 10% Frequency: 1Hz-1MHz Sine wave Amplitude: 0-3V to 9V DC input Distortion: less than 1% (at 1kHz) Flatness: 0.05dB 1Hz-100kHz Square wave Amplitude: 8V (no-load) to 9V DC input Rise time: less than 50ns (at 1kHz) Fall time: less than 30ns (at 1kHz) Symmetry: less than 5% (at 1kHz) Triangular wave Amplitude: 0-3V to 9V DC input Linearity: less than 1% (up to 100kHz) 10mA Circuit Characteristics: Can generate sine, triangular, and square waves Frequency can range from 1HZ-1MHz Frequency and amplitude adjustable; Five bit precision resolution; Frequency adjustment has coarse and fine tuning; Wide power supply range, can use external power supply 9-12V or 9V batteries; All inline components, with a small number of components, make installation and debugging simple. Parameter list of Function generator components The welding installation considerations, follow these steps: 1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc. 2.Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer. 3.The back with a diagonal cutting pliers to cut short the pins as far as possible Debugging steps: 1.After completion of welding on IC, XR2206, pay attention to the direction of IC, insert the might damage the chip! 2. check the IC whether against, such as anti please timely correction. 3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12 v Using the step 1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of) 2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of) 3. SQU blue terminals output pulse 4. AMP : Sine wave, triangle wave amplitude adjustment 5. FINE : Frequency fine adjustment 6. Coarse : Frequency of coarse adjustment Packing List: *As Per Below Image Screenshot
