Robotic Arm Bundle
$ 99.00

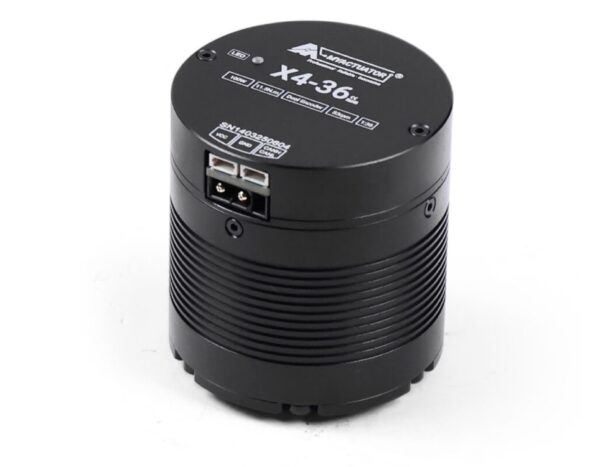

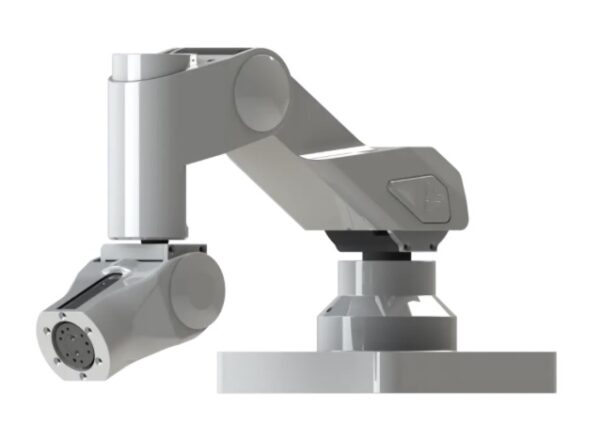

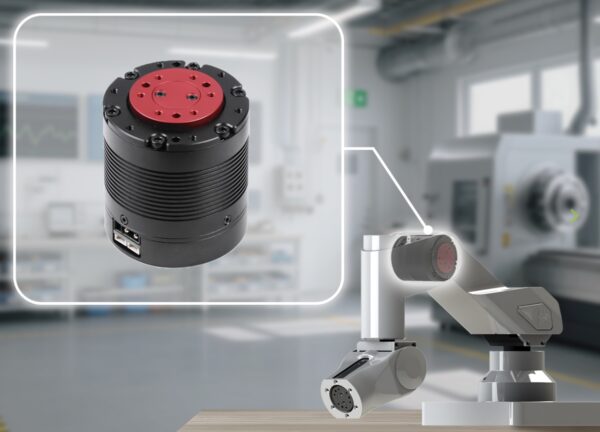

- Description Features Highly-integrated Includes frameless torque motor, absolute encoder, driver circuitry and planetary reducer Simple connection Needs only one XT30(2 2) cable for power connection and control communication (CAN) interface Dual Encoder Enables multi-turn position recognition Battery power compatible Could be used in 24V battery-powered system Daisy-chain capable Can connect multiple X4 motors in series using XT30cables for robotics applications Specification Product Myactuator X4-36 Motor Rated Voltage 24V Operating Temperature 0℃~50℃ Mechanical Dimension 55mm x 55mm x 61mm Communication Interface CAN Gear Ratio 1:36 Rated Output Power 100 W Rated Torque 10.5 Nm Peak Torque 34 Nm Pole pair 13 For more information, please see datasheet Hardware Overview Application Robot Arm Please contact customer service for arm’s reference design (STEP file) after purchase Documents Datasheet User Manual Control Protocol
