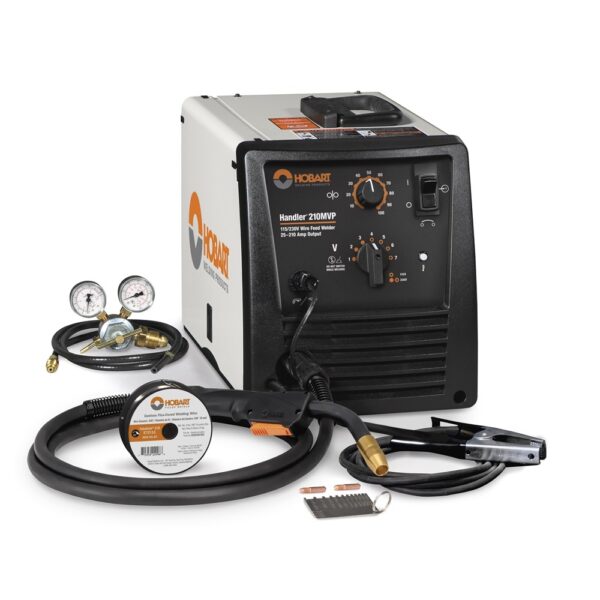

Hobart Handler 210MVP MIG Welder
$ 94.52

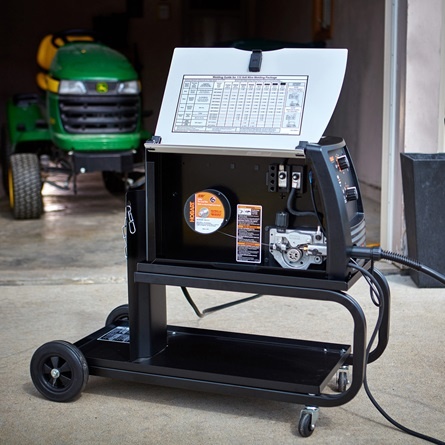

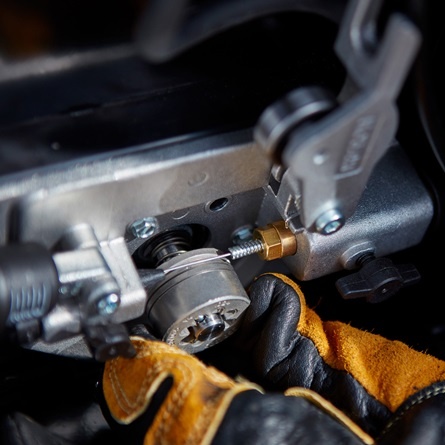

- Features and BenefitsDocumentsSpecificationsWhat's IncludedFeatures and Benefits 7 (230 V) and 4 (115V) voltage settings, with infinite wire feed speed control Allows you to fine control the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up. Dual-voltage capability with MVP (multi-voltage plug) Allows you to connect to common 115 or 230 V power receptacles without the use of any tools – simply choose the plug that fits the receptacle. Door Chart with initial settings You are able to quickly reference initial settings for different wires, gases, materials, and thicknesses. Provides you a quick starting point whether you are a novice or professional. Quick Select drive roll Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire. Self-resetting thermal overload Protects power transformer from thermal overload to provide you maximum reliability. Max 210 amps in small portable case Sized for you to easily transport the unit to the jobsite with the power to weld 3/8 in. mild steel. Accepts uncomplicated, simple-to-install direct plug-in SpoolRunner 100 spool gun Allows you to weld aluminum with enhanced feed ability and reduction of “bird-nesting. Integrated spool gun control circuitry is standard Eliminates your need for an additional control box or adaptor to connect the SpoolRunner 100 spool gun. Built-in contactor Keeps wire electrically “cold” until trigger is pulled which gives you ease of use and keeps you safe. Industrial cast aluminum wire drive system Durable wire feed provides you professional performance Convenient polarity changeover with tip holder Easier and quicker for you to change polarity between solid or tubular wire. Short circuit protection Protects unit against current overload. Current-limited motor protection Protects wire feed system from overload, you won’t need to change or reset the circuit breaker button. Documents Spec Sheet (ENG) Specifications PROCESSES Flux Cored (FCAW) MIG (GMAW) Title Handler® 210MVP MIG Welder Material Thickness Mild Steel 1/4 in – 3/8 in. Weldable Metals Stainless Steel Steel Aluminum Input Voltage 110/115/120 V 220/230/240 V Input Phase 1-Phase Input Hz 60 Hz Current Type DC Rated Output 115 V, 90A @ 20% 230V, 150A @ 30% Max Open Circuit Voltage 34 VDC Wire Feed Speed 40 IPM 770 IPM Weld Output CV Net Width 10.625 in Net Height 12.375 in Net Length 19.5 in Net Weight 79 lbs Warranty 3 Years CERTIFICATIONS CSA Certificate of Compliance 70199022 What's Included Comfortable 10 ft. (3m) HR-100 gun Owner’s manual with installation, operation and maintenance guidelines. 10 ft.(3m) work cable with clamp Built-in gas solenoid value and dual-gauge regulator with gas hose Spool hub assembly accommodates 4 or 8 in. spools Sample spool of .030 in. self-shielding flux-cored wire .030 (0.8mm) contact tips Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. Power cord with 5-15 P (115 V, 15 A) and 6-50 P (230 V, 50 A) MVP (TM) plugs Welding guide and material thickness gauge SKU: 500553 Categories: Brands, Hobart Welding Products, MIG Welding (GMAW) Brand: Hobart
