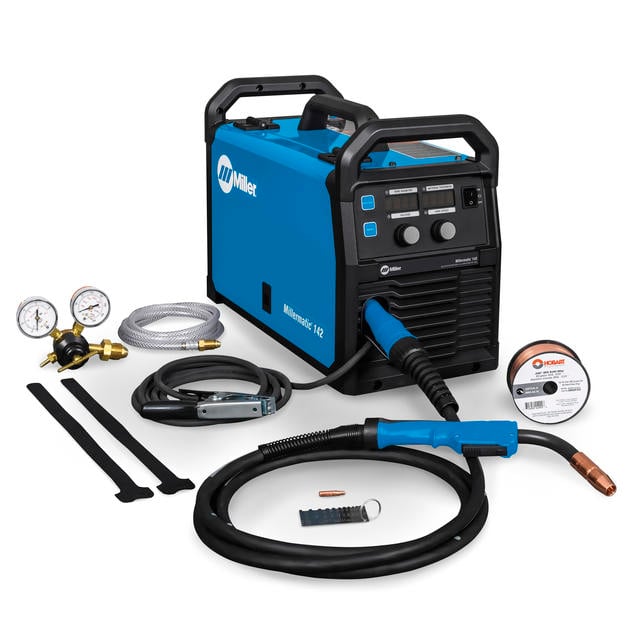

Miller Millermatic 142 MIG Welder
$ 91.01
- Features & Benefits What's IncludedDocumentsSpecificationsFeatures & Benefits Miller Millermatic 142 MIG Welder – 907838 The Millermatic® 142 is a 140 amp portable MIG welder that runs on standard 120 volt household current. The 142 features Auto-Set, which eliminates the guesswork of setting voltage and wire feed speed for your MIG welding application. Simply select the material thickness and wire diameter while the welder is in the Auto-Set mode, and you are ready to weld. The Auto-Set control automatically sets your welder to the proper parameters. It is available when welding mild steel with solid wire and C25 shielding gas (75% Argon, 25% CO2), AND while welding aluminum with an OPTIONAL Spoolmate™ 100 or Spoolmate™ 150 spool gun and argon shielding gas. Manual MIG welding control is also available for those welders who wish to fine tune their welding arc. Manual welding mode must also be used when MIG welding aluminum, stainless steel or for flux-cored welding. The parameter door chart lists voltage and wire feed speed settings options. Processes MIG (GMAW) Flux Cored (FCAW) (gas and self-shielded)Applications Light Industrial Applications Light Fabrication Maintenance and Repair Auto Body Farm/Home Features: Auto-Set™ automatically provides the right settings to weld mild steel while infinite voltage control allows the flexibility to manually set your own parameters. Set the wire diameter, a blue light shows Auto-Set is activated Dial in the thickness of what you are welding Start welding with the exact parameters you need! Quick Select™ drive roll makes setup quicker by offering three grooves, two for different size solid wire and a third for flux-cored welding wire. Auto Spoolgun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch. Smooth-Start™ provides a smooth, spatter-free start. It is the best-starting machine in the small MIG machine category. Thermal overload protection shuts down unit and activates the over temperature light if airflow is blocked or duty cycle is exceeded. Automatically resets when unit cools. Fan-On-Demand™ cooling system only operates when needed, reducing noise, energy use and the amount of contaminants pulled though the machine. Uses 4 inch or 8 inch (102 or 203 mm) spools and can be set up to weld with .024 to .030 inch (0.6 to 0.8 mm) solid wire and .030 to .035 inch (0.8 to 0.9 mm) flux-cored wire. Specs Comes complete with: Millermatic® 142 MIG Welding Power source 6.5-ft. (2 m) power cord with plug 10-ft. (3 m), 100 amp MDX™-100 MIG gun and cable assembly 10-ft. (3 m) work cable with clamp Argon – Argon/CO2 mix flow gauge regulator with gas hose Hobart® spool of .030-in. (0.8 mm) solid wire Two contact tips for .030-in. (0.8 mm) wire Quick Select® drive rolls for .024-in. (0.6 mm) or .030/.035-in. (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire Material thickness gauge #229 895 Hook and loop cord wraps What's Included WHAT’S INCLUDED Millermatic 142 10-ft. (3 m) MDX™-100 MIG Welding Gun 10-ft. (3 m) work cable with clamp 6.5-ft. (2 m) power cord with plug Argon and AR/CO2 mix flow gauge regulator with gas hose Hobart® spool of .030-in. (0.8 mm) solid wire Two contact tips for .030-in. (0.8 mm) wire Quick Select drive rolls for .024-in (0.6 mm) or .030/.035-in. (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire Material thickness gauge (#229 895) Hook-and-loop cord wraps NOT INCLUDED Shielding gas for welding with solid wire (GMAW) Spool Gun for welding aluminum Small running gear/cylinder rack Personal safety equipment (helmet, gloves, etc.) Documents Spec Sheet (English) Specifications PRODUCT LITERATURE DC/12.41 Millermatic 142 – English PROCESSES Flux Cored (FCAW) MIG (GMAW) GENERAL SPECIFICATIONS Title Millermatic® 142 MIG Welder Industries Interests Racing Farm and Ranch Manufacturing Welding Education and Training Amperage 30 A – 140 A Material Thickness Aluminum 18 ga. (1.2 mm) – 14 ga. (1.9 mm) Mild Steel 24 ga. (0.8 mm) – 3/16 in. (4.8 mm) Weldable Metals Aluminum Stainless Steel Steel Input Voltage 110/115/120 V Input Phase 1-Phase Input Hz 60 Hz Current Type DC Rated Output 100 A at 19 V, 60% duty cycle 80 A at 18 V, 100% duty cycle Max Open Circuit Voltage 30 VDC Wire Feed Speed 1.5 m/min – 15.2 m/min 60 IPM – 600 IPM Wire Diameter Stainless 0.024 in. – 0.03 in. Stainless 0.6 mm. – 0.8 mm. Solid Steel 0.6 mm. – 0.8 mm. Solid Steel 0.024 in. – 0.03 in. Flux Cored 0.03 in. – 0.035 in. Flux Cored 0.8 mm. – 0.9 mm. Spool Size 8 in. Portability Handle(s) Running Gear / Cart (Optional) Weld Output CV Applications Car Restoration Garage/Shop Metal Art Welding Projects SKU: 907838 Categories: Brands, MIG Welding (GMAW), Miller Electric Tag: millermatic Brand: Miller
